1.系列代碼 Series Symbol |
MPX |
|
2.規格 Specification |
70,100 |
|
3.配管形式 Type of Connection |
無標志: 軟管連接 |
|
4.泵體材質 Casing Material |
G: GFRPP C: CFRPP P: PVDF E: CFRETFE |
|
5.泵軸材質 Shaft Material |
A: 高鋁陶瓷 CERAMIC S: 碳化硅 SSIC |
|
6.軸承材質 Bearing Material |
C: 碳 CARBON R: 填充四氟 PTFE S: 碳化硅 SSIC |
|
7.O型圈材質 O-Ring Material |
E: 三元乙丙 EPDM V: 氟橡膠 VITON K: 高氟化橡膠 FKM |

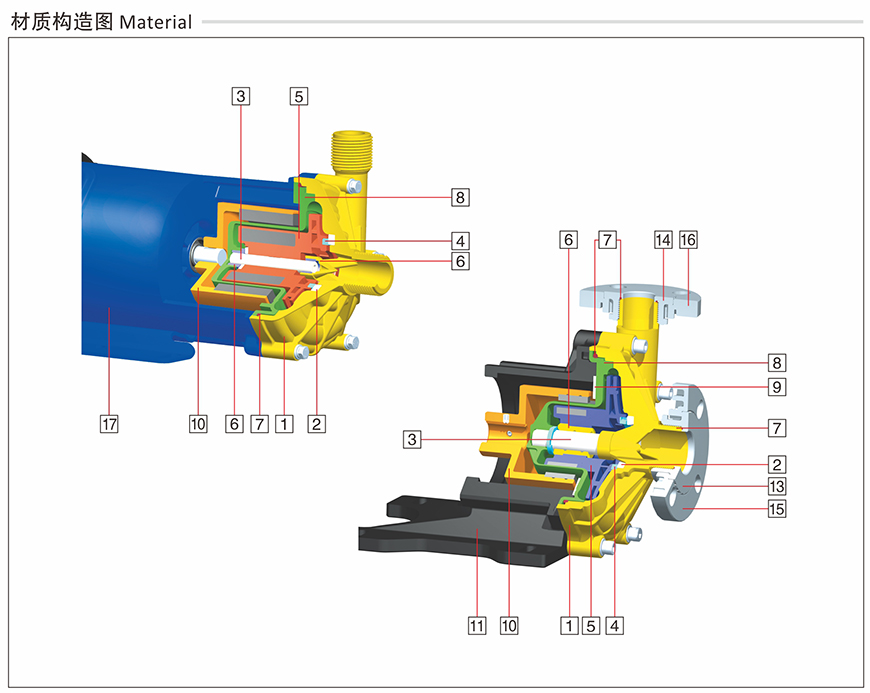

| 編號NO. | 名稱 Description | ACE | ACV | ARE | ARV | AAE | AAV | SSE | SSV |
| 1 | 前蓋 Pump casing | GFRPP/CFRPP/PVDF/CFRETFE | |||||||
| 2 | 前止推環 Front thrust ring | CERAMIC | |||||||
| 3 | 泵軸 Shaft | CERAMIC | |||||||
| 4 | 前蓋 Pump casing | PTFE | |||||||
| 5 | 前蓋 Pump casing | GFRPP/CFRPP/PVDF/CFRETFE | |||||||
| 6 | 軸承 Bearing |
CARBON |
PTFE | CERAMIC | SSIC | ||||
| 7 | O形圈 O-Ring |
EPDM |
VITON | EPDM | VITON | EPDM | VITON | EPDM | VITON |
| 8 | 后蓋 Rear casing | GFRPP/CFRPP/PVDF/CFRETFE | |||||||
| 9 | 后蓋背板 Backup plate | SUS304 | |||||||
| 10 | 驅動磁鐵 Drive magnet | FERRITE/Nd-Fe-B | |||||||
| 11 | 支架 Frame | GFRPP/PC | |||||||
| 12 | 底座 Base frame | GFRPP | |||||||
| 13 | 入口法蘭連接件 Inlet flange adapter | GFRPP/CFRPP/PVDF/CFRETFE | |||||||
| 14 | 出口法蘭連接件 Outlet flange adapter | GFRPP/CFRPP/PVDF/CFRETFE | |||||||
| 15 | 入口活動法蘭Inlet adjustable flange | GFRPP/PVDF | |||||||
| 16 | 出口活動法蘭 Outlet adjustable flange | GFRPP/PVDF | |||||||
| 17 | 馬達 Motor | ||||||||

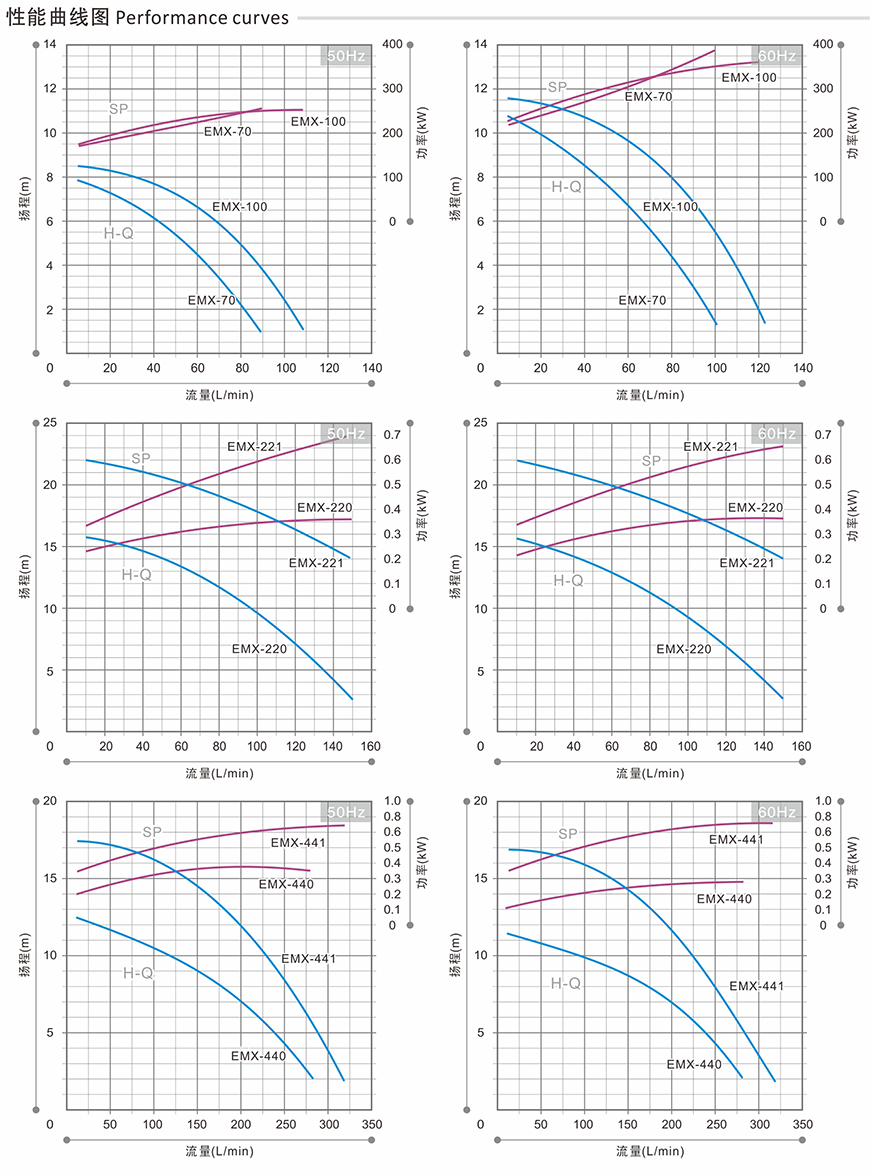

規格表：
|
型號 Model |
入口×出口 Inlet×Outlet |
比重極限值 Specific Qravity |
額定流量 Rated Capacity (L/min) |
額定揚程 Rated Head (m) |
最大流量 Max. Capacity (L/min) |
最高揚程 Max. Head (m) |
馬達輸出功率 Motor output (kW) |
| MPX-70M | G1*G1 | 1.2 | 50 | 5.4/7.8 | 90/100 | 8/11 | 0.15/0.18 |
| MPX-100M | G1*G1 | 1.2 | 70 | 6/9 | 110/125 | 8.5/11.7 | 0.26 |
| MPX-220 | 25A*25A | 1.2 | 50 | 14/13.5 | 150 | 15.5 | 0.37 |
| MPX-221 | 25A*25A | 1.0 | 80 | 19 | 150 | 22 | 0.75 |
| MPX-440 | 40A×40A | 1.2 | 100 | 10.5/10 | 280 | 12.5/10.5 | 0.37 |
| MPX-441 | 40A×40A | 1.2 | 150 | 14.5 | 320 | 17.5/16.8 | 0.75 |
| MPX-542 | 50A×40A | 1.2 | 200 | 20/19.5 | 450 | 27/23.5 | 1.5 |
| MPX-542H | 50A×40A | 1.0 | 100 | 30 | 160/140 | 31.5 | 1.5 |
| MPX-543 | 50A×40A | 1.2 | 250 | 23/25 | 500 | 30.7/30 | 2.2 |
| MPX-543H | 50A×40A | 1.0 | 100 | 35/36 | 300/250 | 35.7/37 | 2.2 |
| MPX-655 | 65A×50A | 1.2 | 500 | 24.5/23.5 | 800 | 27/26.5 | 3.75 |
