| 1.系列代碼 Series Symbol | FP |
| 2.出口口徑 Discharge Size | 32: 1-1/4" 40: 1-1/2" 50: 2" |
| 3.比重 Specfic Weight |
VK-1.1 VP-1.4 |
| 4.馬力 Motor Power |
1:1HP 2: 2HP 3: 3HP 5: 5HP 7.5: 7.5HP 10: 10HP |
| 5.頻率 Frequency | 5：50HZ 6：60HZ |
| 6.橡膠材質 Rubber Material |
E: EPDM V: VITON |
| 7.泵浦材質 Pump Material |
F: FRPP P: PVDF |
| 8.附注 Notes |
B: 采用FRPP材質之馬達連接座 |
產品參數：
|
型號 Model |

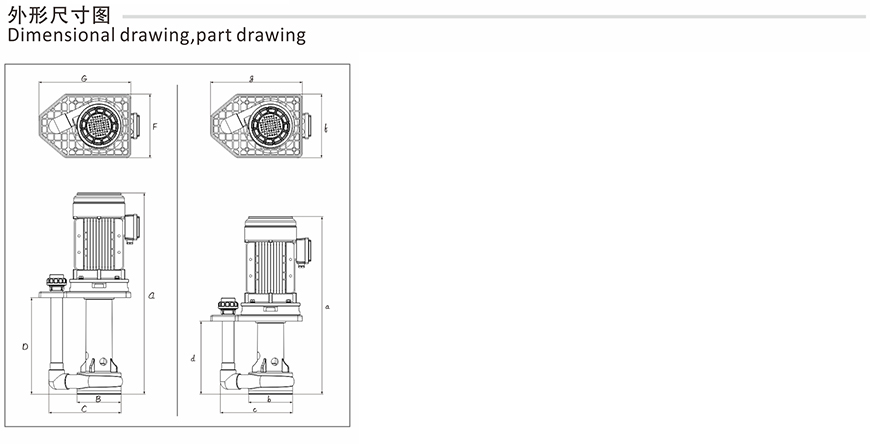

(長款)尺寸 Size(mm) | |||||
| A | B | C | D | F | G | |
| BTH-40(32)VK(P)-1 | 784 | 188 | 313 | 410 | 240 | 350 |
| BTH-40(32)VK(P)-2 | 802 | 188 | 313 | 410 | 240 | 350 |
| BTH-40VK(P)-3 | 827 | 188 | 313 | 410 | 240 | 350 |
| BTH-50VK(P)-5 | 854 | 188 | 313 | 410 | 270 | 390 |
| BTH-50VK(P)-7.5 | 825 | 232 | 370 | 415 | 336 | 465 |
| BTH-50VK(P)-10 | 865 | 232 | 370 | 415 | 336 | 465 |
|
型號 Model |
(短款)尺寸 Size(mm) | |||||
| a | b | c | d | f | g | |
| BTH-40(32)VK(P)-1 | 674 | 188 | 313 | 300 | 240 | 350 |
| BTH-40(32)VK(P)-2 | 692 | 188 | 313 | 300 | 240 | 350 |
| BTH-40VK(P)-3 | 717 | 188 | 313 | 300 | 240 | 350 |
| BTH-50VK(P)-5 | 744 | 188 | 313 | 300 | 270 | 390 |
| BTH-50VK(P)-7.5 | 728 | 232 | 370 | 315 | 336 | 465 |
| BTH-50VK(P)-10 | 768 | 232 | 370 | 315 | 336 | 465 |
規格表：
|
型號 Model |
比重 Specfic Weight |
進出口徑 Diameter (mm) |
功率 Power | 50HZ | 60HZ | ||||
| HP |
極數 Charge |
全揚程 Total head (m) |
全流量 Total capacity (L/min) |
全揚程 Total head (m) |
全流量 Total capacity (L/min) |
重量 Weight (Kg) |
|||
| BTH-32VK-1 | 1.1 | 50/32 | 1 | 2 | 18 | 200 | 17 | 160 | |
| BTH-40VK-1 | 1.1 | 50/40 | 1 | 2 | 18 | 210 | 16.5 | 170 | |
| BTH-32VK-2 | 1.1 | 50/32 | 2 | 2 | 26 | 290 | 25 | 260 | |
| BTH-40VK-2 | 1.1 | 50/40 | 2 | 2 | 26 | 380 | 24 | 300 | |
| BTH-40VK-3 | 1.1 | 50/40 | 3 | 2 | 28 | 400 | 27 | 350 | |
| BTH-50VK-5 | 1.1 | 50/50 | 5 | 2 | 32 | 560 | 30 | 520 | |
| BTH-50VK-7.5 | 1.1 | 50/50 | 7.5 | 2 | 44 | 640 | 38 | 620 | |
| BTH-50VK-10 | 1.1 | 50/50 | 10 | 2 | 46 | 700 | 43 | 690 | |
| BTH-32VP-1 | 1.4 | 50/32 | 1 | 2 | 19 | 180 | 16 | 150 | |
| BTH-40VP-1 | 1.4 | 50/40 | 1 | 2 | 17 | 190 | 16 | 160 | |
| BTH-32VP-2 | 1.4 | 50/32 | 2 | 2 | 26 | 260 | 23 | 240 | |
| BTH-40VP-3 | 1.4 | 50/40 | 3 | 2 | 28 | 330 | 25 | 320 | |
| BTH-50VP-5 | 1.4 | 50/50 | 5 | 2 | 28.5 | 540 | 30 | 500 | |
| BTH-50VP-7.5 | 1.4 | 50/50 | 7.5 | 2 | 41 | 620 | 38 | 580 | |
| BTH-50VP-10 | 1.4 | 50/50 | 10 | 2 | 45 | 680 | 43 | 650 | |
